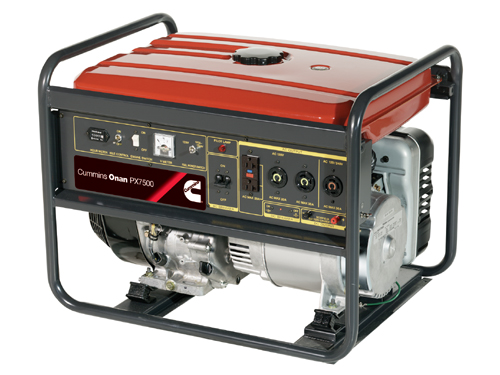

PX7500 & PX7500e

PX7500

Download Brochure Download Printable Brochure

Features and Benefits

  • 6000 watts running, 7300 watts peak
  • 7 hour continuous operating time (at rated load)
  • Manual start (*optional electric start)
  • 13.5 HP, 4-stroke overhead valve engine
  • Large 7.3 gallon fuel tank
  • 120 V GFCI protected duplex, 120 V 20 A twist-lock, 120 V 30 A twist-lock, 120 V/240 V 30 A twist-lock
  • Full power switch
  • Volt and hour meter
  • Large muffler w/U.S. Forestry approved spark arrestor
  • Idle control system
  • High performance alternator w/max surge capacity
  • 2 year limited warranty
  • Meets EPA, CARB, CSA standards



Weight, Size and Sound Level

  • Weight of PX7500: 198 lbs (89.8 kg)
  • Weight of PX7500e: 209 lbs (94.8 kg)
  • Size: Length 27 in (685.8 mm), width 21 in (533.4 mm), height 21 in (533.4 mm)
  • Sound: Readings at 7 m: 76 dB(A)



Models and Ratings

  • AC rated output: 6.0 kW/6000 W
  • AC max output: 7.3 kW/7300 W
  • AC voltage: 120 V/240 V
  • AC frequency: 60 Hz
  • 120 V AC rated amperage - Rated/max: 50 A/60.8 A
  • 240 V AC rated amperage - Rated/max: 25 A/30.4 A
  • DC voltage: 12 V
  • Engine horsepower: 13.5
  • Fuel tank capacity: 7.3 Gal/27.6 L



Ratings apply to altitudes up to 1000 ft (304.8 m), 85 °F (30 °C). Total power available will decrease 3.5% for each 1000 ft (304.8 m) above 1000 ft and 2.0% for each 10 °F (5.5 °C) increase in ambient temperature above 85 °F (30 °C).
