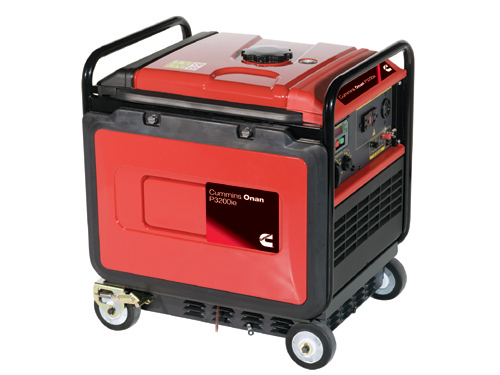

P3200ie

Download Printable Brochure

Features and Benefits

• 2800 watts running, 3200 watts peak
• 6.5 hour continuous operating time (at rated load)
• Electric start (recoil back-up)
• 7 HP, 4-stroke overhead valve engine
• Large 2.9 gallon fuel tank
• LED display
• 120 V GFCI protected duplex, 120 V twist lock
• Multi-meter w/ LED display - voltmeter, hour meter, frequency and overload condition
• Auto-power saver
• 2 year limited warranty
• Meets EPA, CSA standards



Weight, Size and Sound Level

• Weight: 130 lbs (58.9 kg)
• Size: Length 21 in (525 mm), width 19 in (482.6 mm), height 23 in (584.2 mm)
• Sound: Readings at 7 m: 58 dB(A)



Models and Ratings

• AC rated output: 2.8 kW/2800 W
• AC max output: 3.2 kW/3200 W
• AC voltage: 120 V
• AC frequency: 60 Hz
• 120 V AC rated amperage - Rated/max: 23.3 A/26.7 A
• DC voltage: 12 V
• Engine horsepower: 7
• Fuel tank capacity: 2.9 Gal/10.9 L



Ratings apply to altitudes up to 1000 ft (304.8 m), 85 °F (30 °C). Total power available will decrease 3.5% for each 1000 ft (304.8 m) above 1000 ft and 2.0% for each 10 °F (5.5 °C) increase in ambient temperature above 85 °F (30 °C).
