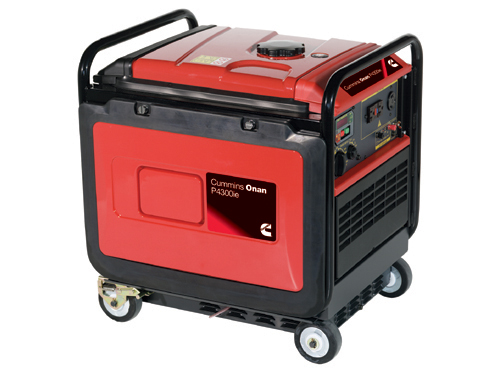

P4300ie

Download Printable Brochure

Features and Benefits

• 3800 watts running, 4300 watts peak
• 5.3 hour continuous operating time (at rated load)
• Electric start (recoil back-up)
• 9 HP, 4-stroke overhead valve engine
• Large 3.4 gallon fuel tank
• 120 V GFCI protected duplex, 120 V twist lock
• Multi-meter w/ LED display - voltmeter, hour meter, frequency and overload condition
• Auto-power system idle control
• 4 wheels standard
• 2 year limited warranty
• Meets EPA, CARB, CSA standards



Weight, Size and Sound Level

• Weight: 163 lbs (73.9 kg)
• Size: Length 23 in (584.2 mm), width 21 in (533.4 mm), height 24 in (609.6 mm)
• Sound: Readings at 7 m: 62 dB(A)



Models and Ratings

• AC rated output: 3.8 kW/3800 W
• AC max output: 4.3 kW/4300 W
• AC voltage: 120 V
• AC frequency: 60 Hz
• 120 V AC rated amperage - Rated/max: 31.7 A/35.8 A
• DC voltage: 12 V
• Engine horsepower: 9
• Fuel tank capacity: 3.4 Gal/12.9 L



Ratings apply to altitudes up to 1000 ft (304.8 m), 85 °F (30 °C). Total power available will decrease 3.5% for each 1000 ft (304.8 m) above 1000 ft and 2.0% for each 10 °F (5.5 °C) increase in ambient temperature above 85 °F (30 °C).
