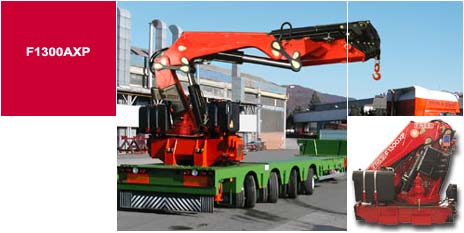

| F1300AXP |
| Loading Group |
|
|
24 |
26 |
28 |
| Lifting capacity |
tm |
|
96,1 |
92,5 |
90,5 |
| Standard reach |
m |
|
11,55 |
15,80 |
20,00 |
| Hydraulic extension |
m |
|
7,10 |
11,25 |
15,25 |
| Rotation |
° |
|
360 |
360 |
360 |
| Rotation torque |
kNm |
|
100,0 |
100,0 |
100,0 |
| Working pressure |
MPa |
|
33,0 |
33,0 |
33,0 |
| Pump capacity |
l/min |
|
90-110 |
90-110 |
90-110 |
| Oil tank capacity |
l |
|
260+260 |
260+260 |
260+260 |
| Crane weight |
kg |
|
9750 |
10500 |
11200 |
| Crane length |
mm |
|
2545 |
2545 |
2545 |
| Crane width |
mm |
|
2830 |
2830 |
2830 |
| Crane height |
mm |
|
2440 |
2440 |
2440 |
|
