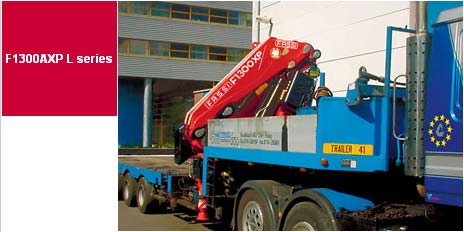

| F1300AXP L Series |
| Loading Group |
|
|
26L516 |
28L414 |
28L426 |
| Lifting capacity |
tm |
|
92,5 |
90,5 |
90,5 |
| Standard reach |
m |
|
27,85 |
29,60 |
32,65 |
| Hydraulic extension |
m |
|
20,15 |
21,85 |
24,15 |
| Rotation |
° |
|
360 |
360 |
360 |
| Rotation torque |
kNm |
|
100,0 |
100,0 |
100,0 |
| Working pressure |
MPa |
|
33,0 |
33,0 |
33,0 |
| Pump capacity |
l/min |
|
90-110 |
90-110 |
90-110 |
| Oil tank capacity |
l |
|
260+260 |
260+260 |
260+260 |
| Crane weight |
kg |
|
12100 |
12150 |
12550 |
| Crane length |
mm |
|
2545 |
2545 |
2545 |
| Crane width |
mm |
|
2830 |
2830 |
2830 |
| Crane height |
mm |
|
2755 |
2800 |
2750 |
|
