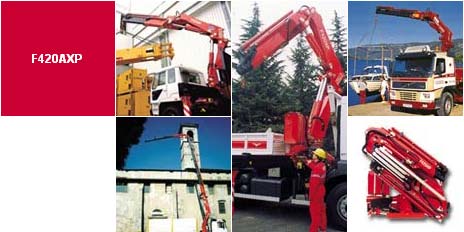

| F420AXP |
| Loading Group |
|
|
22 |
23 |
24 |
25 |
26 |
27 |
28 |
| Lifting capacity |
tm |
|
40,0 |
38,6 |
37,8 |
37,5 |
36,8 |
36,3 |
34,3 |
| Standard reach |
m |
|
8,00 |
10,10 |
12,30 |
14,40 |
16,80 |
19,25 |
20,60 |
| Hydraulic extension |
m |
|
3,75 |
5,75 |
7,85 |
9,85 |
12,25 |
14,55 |
15,85 |
| Rotation |
° |
|
430 |
430 |
430 |
430 |
430 |
430 |
430 |
| Rotation torque |
kNm |
|
52,33 |
52,33 |
52,33 |
52,33 |
52,33 |
52,33 |
52,33 |
| Working pressure |
MPa |
|
32,5 |
32,5 |
32,5 |
32,5 |
32,5 |
32,5 |
32,5 |
| Pump capacity |
l/min |
|
50-70 |
50-70 |
50-70 |
50-70 |
50-70 |
50-70 |
50-70 |
| Oil tank capacity |
l |
|
180 |
180 |
180 |
180 |
180 |
180 |
180 |
| Crane weight |
kg |
|
4100 |
4300 |
4500 |
4700 |
4950 |
5150 |
5350 |
| Crane length |
mm |
|
2500 |
2500 |
2500 |
2500 |
2500 |
2500 |
2500 |
| Crane width |
mm |
|
1260 |
1260 |
1260 |
1260 |
1260 |
1310 |
1310 |
| Crane height |
mm |
|
2400 |
2400 |
2400 |
2410 |
2400 |
2400 |
2400 |
|
