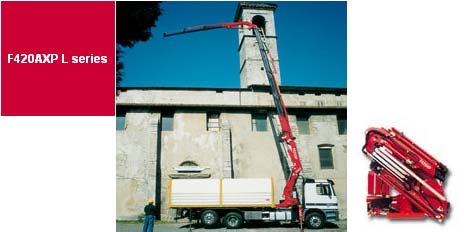

| F420AXP L Series |
| Loading Group |
|
|
24L323 |
24L324 |
25L324 |
26L212 |
26L213 |
26L214 |
| Lifting capacity |
tm |
|
37,8 |
37,8 |
37,5 |
36,8 |
36,8 |
36,8 |
| Standard reach |
m |
|
20,20 |
22,10 |
24,05 |
22,75 |
24,65 |
26,85 |
| Hydraulic extension |
m |
|
12,80 |
14,65 |
16,75 |
15,75 |
16,75 |
19,85 |
| Rotation |
° |
|
430 |
430 |
430 |
430 |
430 |
430 |
| Rotation torque |
kNm |
|
52,33 |
52,33 |
52,33 |
52,33 |
52,33 |
52,33 |
| Working pressure |
MPa |
|
32,5 |
32,5 |
32,5 |
32,5 |
32,5 |
32,5 |
| Pump capacity |
l/min |
|
50-70 |
50-70 |
50-70 |
50-70 |
50-70 |
50-70 |
| Oil tank capacity |
l |
|
180 |
180 |
180 |
180 |
180 |
180 |
| Crane weight |
kg |
|
5065 |
5165 |
5360 |
5315 |
5385 |
5450 |
| Crane length |
mm |
|
2500 |
2500 |
2500 |
2500 |
2500 |
2500 |
| Crane width |
mm |
|
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
| Crane height |
mm |
|
2640 |
2640 |
2640 |
2640 |
2640 |
2640 |
|
