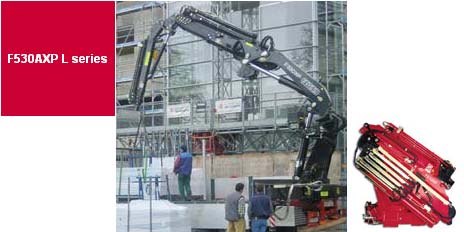

| F530AXP L Series |
| Loading Group |
|
|
24L413 |
24L414 |
26L323 |
26L324 |
28L102 |
| Lifting capacity |
tm |
|
49,0 |
49,0 |
47,2 |
47,2 |
46,6 |
| Standard reach |
m |
|
20,00 |
21,95 |
24,45 |
26,40 |
26,90 |
| Hydraulic extension |
m |
|
10,50 |
12,55 |
14,40 |
16,40 |
19,55 |
| Rotation |
° |
|
360 |
360 |
360 |
360 |
360 |
| Rotation torque |
kNm |
|
45,00 |
45,00 |
45,00 |
45,00 |
45,00 |
| Working pressure |
MPa |
|
32,5 |
32,5 |
32,5 |
32,5 |
32,5 |
| Pump capacity |
l/min |
|
70-90 |
70-90 |
70-90 |
70-90 |
70-90 |
| Oil tank capacity |
l |
|
200 |
200 |
200 |
200 |
200 |
| Crane weight |
kg |
|
6130 |
6250 |
6500 |
6600 |
6520 |
| Crane length |
mm |
|
2500 |
2500 |
2500 |
2500 |
2535 |
| Crane width |
mm |
|
1655 |
1655 |
1655 |
1655 |
1655 |
| Crane height |
mm |
|
2785 |
2785 |
2785 |
2785 |
2615 |
|
