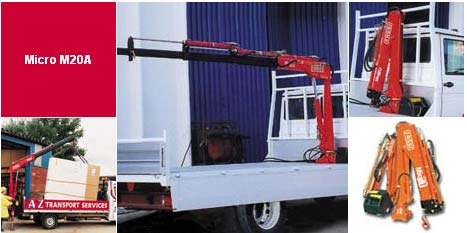

| Micro M20A |
| Loading Group |
|
|
11 |
12 |
13 |
| Lifting capacity |
tm |
|
2,1 |
2,1 |
2,1 |
| Standard reach |
m |
|
2,20 |
3,10 |
4,05 |
| Hydraulic extension |
m |
|
0,90 |
1,80 |
2,70 |
| Rotation |
° |
|
325 |
325 |
325 |
| Rotation torque |
kNm |
|
3,40 |
3,40 |
3,40 |
| Working pressure |
MPa |
|
18,0 |
18,0 |
18,0 |
| Pump capacity |
l/min |
|
8 |
8 |
8 |
| Oil tank capacity |
l |
|
15 |
15 |
15 |
| Crane weight |
kg |
|
195 |
210 |
240 |
| Crane length |
mm |
|
715 |
715 |
800 |
| Crane width |
mm |
|
350 |
350 |
350 |
| Crane height |
mm |
|
1525 |
1525 |
1525 |
|
