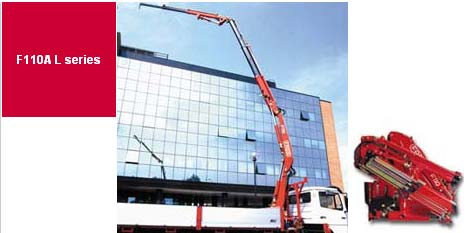

| F110A L Series |
| Loading Group |
|
|
22L012 |
23L102 |
| Lifting capacity |
tm |
|
10,7 |
10,3 |
| Standard reach |
m |
|
14,50 |
16,50 |
| Hydraulic extension |
m |
|
7,30 |
9,30 |
| Rotation |
° |
|
390 |
390 |
| Rotation torque |
kNm |
|
17,65 |
17,65 |
| Working pressure |
MPa |
|
29,0 |
29,0 |
| Pump capacity |
l/min |
|
30 |
30 |
| Oil tank capacity |
l |
|
70 |
70 |
| Crane weight |
kg |
|
1920 |
1955 |
| Crane length |
mm |
|
2370 |
2370 |
| Crane width |
mm |
|
960 |
960 |
| Crane height |
mm |
|
2205 |
2205 |
|
