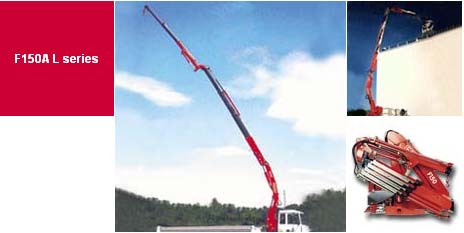

| F150A L Series |
| Loading Group |
|
|
22L102 |
23L102 |
24L102 |
| Lifting capacity |
tm |
|
13,5 |
13,0 |
12,6 |
| Standard reach |
m |
|
14,85 |
16,75 |
18,90 |
| Hydraulic extension |
m |
|
7,30 |
9,25 |
11,35 |
| Rotation |
° |
|
390 |
390 |
390 |
| Rotation torque |
kNm |
|
21,50 |
21,50 |
21,50 |
| Working pressure |
MPa |
|
29,0 |
29,0 |
29,0 |
| Pump capacity |
l/min |
|
40 |
40 |
40 |
| Oil tank capacity |
l |
|
90 |
90 |
90 |
| Crane weight |
kg |
|
2140 |
2230 |
2195 |
| Crane length |
mm |
|
2477 |
2477 |
2477 |
| Crane width |
mm |
|
960 |
960 |
960 |
| Crane height |
mm |
|
2205 |
2205 |
2205 |
|
