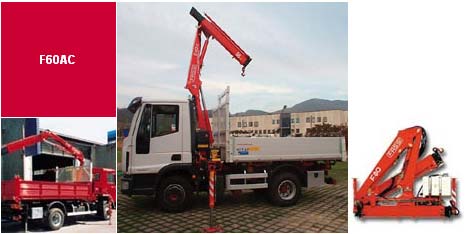

| F60AC |
| Loading Group |
|
|
22 |
23 |
| Lifting capacity |
tm |
|
5,7 |
5,1 |
| Standard reach |
m |
|
6,50 |
8,20 |
| Hydraulic extension |
m |
|
2,90 |
4,50 |
| Rotation |
° |
|
370 |
370 |
| Rotation torque |
kNm |
|
9,60 |
9,60 |
| Working pressure |
MPa |
|
25,5 |
25,5 |
| Pump capacity |
l/min |
|
20 |
20 |
| Oil tank capacity |
l |
|
60 |
60 |
| Crane weight |
kg |
|
800 |
860 |
| Crane length |
mm |
|
2235 |
2235 |
| Crane width |
mm |
|
735 |
735 |
| Crane height |
mm |
|
1905 |
1905 |
|
