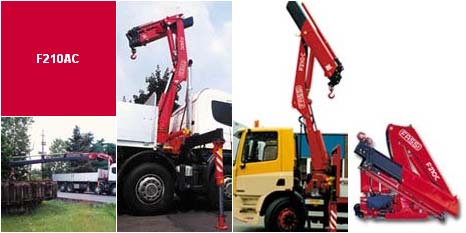

| F210AC |
| Loading Group |
|
|
22 |
23 |
24 |
25 |
| Lifting capacity |
tm |
|
19,1 |
18,6 |
18,1 |
17,9 |
| Standard reach |
m |
|
6,70 |
8,75 |
10,95 |
13,00 |
| Hydraulic extension |
m |
|
2,90 |
4,90 |
7,00 |
9,00 |
| Rotation |
° |
|
400 |
400 |
400 |
400 |
| Rotation torque |
kNm |
|
33,50 |
33,50 |
33,50 |
33,50 |
| Working pressure |
MPa |
|
30,0 |
30,0 |
30,0 |
30,0 |
| Pump capacity |
l/min |
|
45 |
45 |
45 |
45 |
| Oil tank capacity |
l |
|
120 |
120 |
120 |
120 |
| Crane weight |
kg |
|
2095 |
2275 |
2420 |
2545 |
| Crane length |
mm |
|
2460 |
2460 |
2465 |
2480 |
| Crane width |
mm |
|
875 |
875 |
875 |
990 |
| Crane height |
mm |
|
2255 |
2255 |
2255 |
2255 |
|
