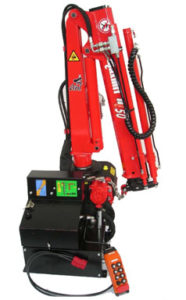

Compact Monoboom. Commonly mounted on the corner of a flat deck truck but also suitable for mounting on a trailer. It can also be equipped with a winch

MAXILIFT CRANES OFFER THE FOLLOWING FEATURES:

  • Maxilift's are very compact and take up very little space when stowed.
  • Maxilift hexagonal boom is constructed of high tensile steel giving it greater strength and less weight.
  • Counter balance valves on both lifting and extension cylinders ensure safe and smooth operation.
  • Crane structure is fabricated out of high tensile steel which makes the crane lighter and gives you a better payload.
  • Wide range of models enables you to have the correct crane for the application.
  • Four hydraulic extensions on certain models.
  • Cranes can be mounted closer to the load and in some cases give them greater lifting greater lifting capacity than much larger monoboom cranes.
  • The electrical power supply and pump is enclosed in a compact metal box with a durable PVC cover to protect it against the harsh North American elements.



H2 B3 Rating
Maxilift Cranes are manufactured to strict European standards. and carry a Din 15018-H2 B3 rating.

H2 B3 Rating

The H factor is a measure of the structural integrity of the crane concerning the amount the crane can lift beyond its rated capacity and the additional stress of high -speed operation on the structure H1 is rated 100% and H2 is rated at 130%.

The B Factor is a measure of the total number of cycles for which the crane is designed. Maxilift is designed for 200 000 cycles whereas a B2 crane is 63 000 cycles.

Maxilift is engineered for a working life of 15 years.

Maxilift Leads the Way with new ECI system

The New ECI overload protection indicator system that has been developed for Maxilift cranes displays the lifting capacity achieved while lifting a load. The display is a series of LED's of different colors that illuminate as capacities are achieved. This accurately indicates the load of the crane. A transducer on the main-lift cylinder measures the pressure and the ECI unit converts the signal to a reading on the display enabling the crane to be operated safely at all times as you know exactly the weight you are lifting, avoiding overload conditions.



Please select the model of your choice from the list below for more information:
M100 - 7,400 ft.lbs. Lifting Capacity
M130 - 9,600 ft.lbs. Lifting Capacity
M160 - 11,000 ft.lbs. Lifting Capacity
M200 - 14,000 ft.lbs. Lifting Capacity
M230 - 16,300 ft.lbs. Lifting Capacity
M260 - 18,500 ft.lbs. Lifting Capacity
M300 - 20,700 ft.lbs. Lifting Capacity
M350 - 24,350 ft.lbs. Lifting Capacity
M510 - 35,300 ft.lbs. Lifting Capacity

*MAXISTAB Manual AWD Hydraulic Stabilizers avail. upon request

Legend:


Hydraulic
Manual Standard
Manual Opional


100.1


Ft
3'2''
6'
8'10''
11'6''
lbs
2178
1210
814
550

Specifications:
Lifiting Capacity: 7,400
Crane Weight: 190-230 lbs.
Brochure: Download PDF
Crane Specifications: Download PDF






130.1


Ft
3'9''
6'10''
9'10''
12'6''
lbs
2530
1386
924
660

130.2

  Ft 3'9'' 6'10'' 9'10'' 12'6''
  lbs 2530 1386 924 660

Specifications:
Lifiting Capacity: 9,600 lbs.
Crane Weight: 260-330 lbs.
Brochure: Download PDF
Crane Specifications: Download PDF





160.1


Ft
3'9''
6'10''
9'10''
12'6''
lbs
2970
1650
1100
770

160.2

  Ft 3'9'' 6'10'' 9'10'' 12'6''
  lbs 2970 1650 1100 770

Specifications:
Lifiting Capacity: 11,000 lbs.
Crane Weight: 275-350 lbs.
Brochure: Download PDF
Crane Specifications: Download PDF






200.1


Ft
3'11'''
7'3''
10'6''
13'9''
17'1''
lbs
3476
1892
1276
990
660

200.2

  Ft
3'11'''
7'3''
10'6''
13'9''
17'1''
  lbs
3476
1892
1276
990
660

200.3

  Ft
4'2''
7'5''
10'8''
13'9''
17'1''
  lbs
3300
1848
1276
990
660

Specifications:
Lifiting Capacity: 14,000 lbs.
Crane Weight: 370-480 lbs.
Brochure: Download PDF
Crane Specifications: Download PDF





230.1


Ft
3'11'''
7'3''
10'6''
13'9''
17'1''
lbs
3,960
2,200
1,496
1,100
770

230.2

  Ft
3'11'''
7'3''
10'6''
13'9''
17'1''
  lbs
3,960
2,200
1,496
1,100
770

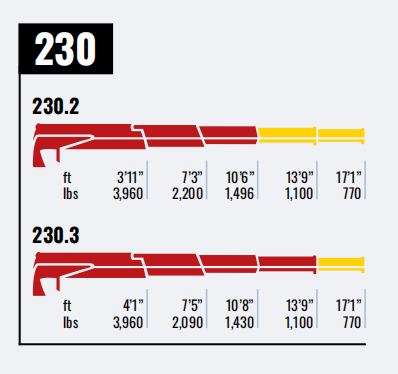

230.3

  Ft
4'1''
7'5''
10'8''
13'9''
17'1''
  lbs
3,960
2,090
1,430
1,100
770

Specifications:
Lifiting Capacity: 16,300 lbs.
Crane Weight: 410-530 lbs.
Brochure: Download PDF
Crane Specifications: Download PDF





260.1


Ft
3'11'''
7'3''
10'6''
13'9''
17'1''
lbs
3,960
2,200
1,496
1,100
770

260.2

  Ft
3'11'''
7'3''
10'6''
13'9''
17'1''
  lbs
3,960
2,200
1,496
1,100
770

260.3

  Ft
4'1''
7'5''
10'8''
13'9''
17'1''
  lbs
3,960
2,090
1,430
1,100
770

Specifications:
Lifiting Capacity: 18,500 lbs.
Crane Weight: 470-595 lbs.
Brochure: Download PDF
Crane Specifications: Download PDF





300.1


Ft
4'3''
7'7''
10'10''
14'4''
17'7''
20'10''
lbs
4730
2684
1870
1386
1100
770

300.2

  Ft
4'3''
7'7''
10'10''
14'4''
17'7''
20'10''
  lbs
4730
2684
1870
1386
1100
770

300.3

  Ft
4'6''
7'9''
11'0''
14'4''
17'7''
20'10''
  lbs
4510
2530
1760
1320
1100
770

300.4
Ft
4'8''
8'
11'3''
14'6''
17'7''
20'10''
lbs
4290
2530
1694
1276
1056
770

Specifications:
Lifiting Capacity: 20,700 lbs.
Crane Weight: 470-630 lbs.
Brochure: Download PDF
Crane Specifications: Download PDF





350.2


Ft 4'9'' 8'4'' 12' 15'6'' 19' 22'3''
lbs 4950 2860 1980 1540 1210 880

350.3

  Ft
5'
8'7''
12'2''
15'6''
19'
22'3''
  lbs
4774
2750
1914
1474
1210
880

350.4

  Ft 5'3'' 8'10'' 12'5'' 15'9'' 19' 22'3''
  lbs 4510 2640 1870 1430 1210 880

Specifications:
Lifiting Capacity: 24,350 lbs.
Crane Weight: 640-815 lbs.
Brochure: Download PDF
Crane Specifications: Download PDF

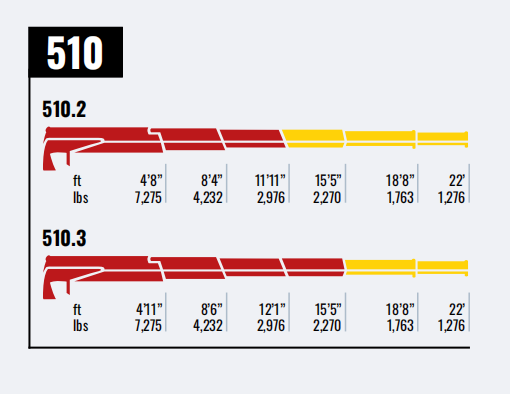

510.2C


Ft 4'7'' 8'3'' 11'9'' 15'4'' 18'7'' 21'9''
lbs 7275 4232 2976 2270 1763 1278

510.3C

  Ft
4'9''
8'5''
12'1''
15'4''
18'7''
21'9''
  lbs
7275
4232
2976
2270
1763
1278

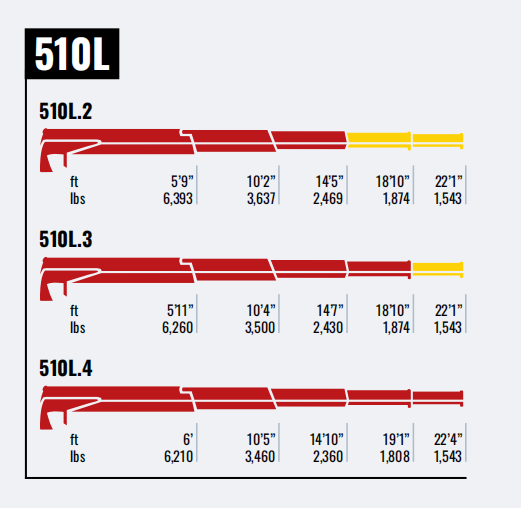

510.2L

  Ft 5'6'' 9'9'' 14'4'' 18'8'' 22'1''
  lbs 6393 3637 2469 1873 1543

510.3L

  Ft 5'7'' 10'2'' 14'6'' 18'8'' 22'1''
  lbs 6393 3637 2469 1873 1543

Specifications:
Lifiting Capacity: 35,300 lbs.
Crane Weight: 970-1100 lbs.
Brochure: Download PDF
