Above Deck Air Compressors

Hydraulic Viper

Typical Applications - Water Departments, Mining Industry, Pipeline Industry, Off-road Tire Service Truck.  Unit features a rotary screw compressor with varying air capacity.
40 to 85 cfm @ 100-150 psig.
Dimensions Std Pressure Models 40 cfm 60 cfm 70 cfm 85 cfm
Length 39.0" Air Pressure (psig) 100 100 100 100
Width 20.0" Hydraulic Flow Required (gpm) 13.5 16.5 18.6 22.5
Height 21.0" Hydraulic Pressure Required (psig) 2250 2250 2250 2300
Wt.   333 lbs
Dimensions High Pressure Models 40 cfm 60 cfm 70 cfm 85 cfm
Length 39.0" Air Pressure (psig) 150 150 150 150
Width 20.0" Hydraulic Flow Required (gpm) 13.5 16.5 18.6 22.5
Height 21.0" Hydraulic Pressure Required (psig) 2700 2800 2850 2800
Wt.  333 lbs


Hydraulic Comet

Unit features a 2-Cylinder, Single-Stage Reciprocating Compressor with a comprehensive start/stop system controlled by receiver tank pressure. Operating Pressure is adjustable up to 125 psig. Typical Applications - Tire Service Truck, Mechanic Service Truck, Lube Truck
30 cfm @ 100-125 psig.
Dimensions Comet 35 Models 35 cfm
Length 32.5" Air Pressure (psig) 100 - 125
Width 17.75" Hydraulic Flow Required (gpm) 11.5
Height 21.75" Hydraulic Pressure Required (psig) 2300 psig @ 1300 rpm
Wt.   280 lbs


Hydraulic Titan

Unit features a 4-Cylinder, 2 Stage Reciprocating Compressor with Finned Intercooler. Operating pressures are adjustable up to 175 psig. Typical Application - Tire Service Truck Mechanic Service Truck, Lube Truck
40 to 46 cfm @ 175 psig.
Dimensions Titan 50 Models 40 - 46 cfm
Length 32.3" Air Pressure (psig) 100 - 175
Width 26.5" Hydraulic Flow Required (gpm) 14.5 gals @ 850 rpm
16.0 gals @ 1000 rpm
Height 26.75" Hydraulic Pressure Required (psig) 2450 psig @ 850 rpm
2300 psig @ 1000 rpm
Wt.    380 lbs


Hydraulic Tiger 40

Unit features a rotary screw compressor. No reservior required. Typical Application - Tire Service Truck Mechanic Service Truck, Lube Truck
20 to 40 cfm @ 100-175 psig.
Dimensions Tiger Models 20 cfm 25 cfm 30 cfm
Length 32.0" Air Pressure (psig) 175 175 175
Width 19.5" Hydraulic Flow Required (gpm) 9.2 gpm 11.0 gpm 12.0 gpm
Height 21.3" Hydraulic Pressure Required (psig) 2400 psig 2375 psig 2400 psig
Wt. 250 lbs
Dimensions Tiger Models 35 cfm 40 cfm
Length 32.0" Air Pressure (psig) 175 175
Width 19.5" Hydraulic Flow Required (gpm) 14.0 gpm 15.0 gpm
Height 21.3" Hydraulic Pressure Required (psig) 2510 psig 2620 psig
Wt. 250 lbs

Hydraulic Viking

Unit features a rotary screw compressor which does not require an air reservior. Typical Applications - Water Departments, Mining Industry, Pipeline Industry, Off-road Tire Service Truck.
20 to 60 cfm @ 100-175 psig.
Dimensions Viking Models 20 cfm 25 cfm 30 cfm 35 cfm
Length 32.0" Air Pressure (psig) 175 175 175 175
Width 19.5" Hydraulic Flow Required (gpm) 9.0 10.5 12 14
Height 21.8" Hydraulic Pressure Required (psig) 2150 2150 2150 2150
Wt. 280 lbs
Dimensions Viking Models 40 cfm 50 cfm 60 cfm
Length 32.0" Air Pressure (psig) 175 175 175
Width 19.5" Hydraulic Flow Required (gpm) 16.0 19.0 22.0
Height 21.8" Hydraulic Pressure Required (psig) 2200 2200 2200
Wt. 280 lbs

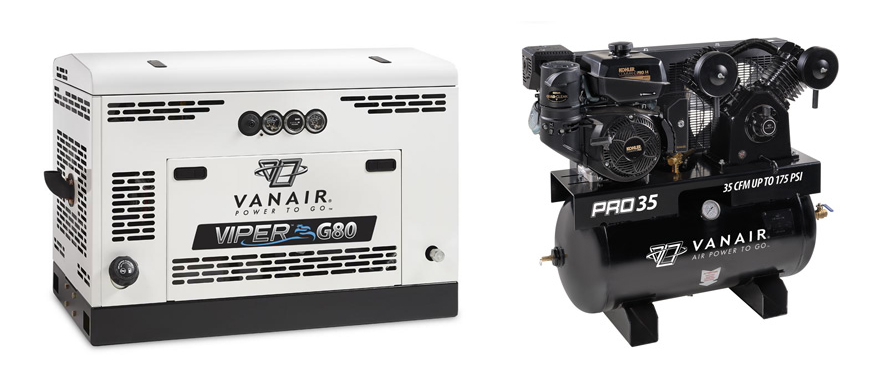

Gas Driven Viper

Unit features a rotary screw compressor powered by a Kohler gasoline engine. The Kohler engine is a 4 cycle, V-Twin, Overhead Valve, 25 H.P. unit with a fuel tank capacity of 5 gallons. This unit can be loaded and unloaded with relative ease from your pick-up.

Unit Dry Weight = 535 lbs.
Dimensions Gas Driven Viper Models 60 cfm 60 cfm 70 cfm 80 cfm 40 cfm Gen.
Length 42.0" Air Pressure (psig) 100 150 150 150 150
Width 33.0" Full Load Speed 3580 rpm 3580 rpm 3300 rpm 3575 rpm 3575 rpm
Height 29.5" Idle Speed 2600 rpm 2600 rpm 2600 rpm 2600 rpm 2600 rpm
  Genair Generator         5.2 kw



Vanair ADHD

Unit features direct coupling to a hydraulic motor - no V-belts or drive lines. This module is ideally suited for equipment already fitted with a hydraulic system. Typical Applications - Utility Companies, Paint Stripers.

1125 to 185 cfm @ 100-150 psig

Air/Oil Tank can be mounted vertically or horizontally
Dimensions Vanair Above Deck PTO Compressors 125 cfm 160 cfm 185 cfm
Length 41.5" Air Pressure (psig) 100 100 100
Width 22.0" Hydraulic Supply Input Speed(rpm) 1600 2000 2150
Height 39.5" Hydraulic Flow Required (gpm) 32 40 43
Wt.  333 lbs Hydraulic Pressure Required (psig) 2200 2300 2400

Dimensions Vanair Above Deck PTO Compressors 125 cfm 160 cfm 185 cfm
Length 41.5" Air Pressure (psig) 150 150 150
Width 22.0" Hydraulic Supply Input Speed(rpm) 1600 2000 2150
Height 39.5" Hydraulic Flow Required (gpm) 32 40 43
Wt.  333 lbs Hydraulic Pressure Required (psig) 2700 2700 2900
