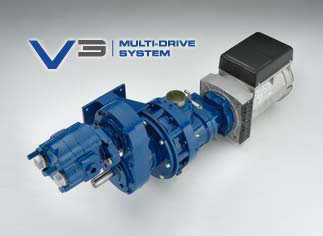

V3 Multi-Drive System
Download Printable Brochure
One PTO - Three types of Power! Get maximum productivity from your fleet - and meet emission compliance regulations - with Vanair's innovative system that combines the power of a 125 to 200 CFM air compressor, a 7,200 -to-11,600-watt AC generator, and a hydraulic pump via a single PTO for the power and the versatility you expect from the industry leader.
| Generator |
| Output (Peak) (kW) |
125 |
160 |
| Weight (lbs.) |
72 |
96 |
| Height (in.) |
10.5 |
12 |
| Width (in.) |
8 |
9 |
| Length (in.) |
14 |
15 |
| Voltage |
120 or 120/240 |
120 or 120/240 |
| Phase |
Single Phase |
Single Phase |
| Speed (RPM) |
3600 |
3600 |
| Air Compressor |
| Capacity (CFM) |
125 |
160 |
185 |
200 |
| Air Pressure (psi) |
100 to 150 |
100 to 150 |
100 to 150 |
100 to 150 |
| Compressor Input (RPM) |
1535 |
2000 |
2300 |
2325 |
| Compressor Oil Capacity (gal.) |
3.5 |
3.5 |
3.5 |
3.5 |
| Mounted Weight (Dry) (lbs.) |
550 |
550 |
550 |
550 |
Special Features
- Auxiliary SAE B pad
- Multi-Drive System - up to 3 power sources
- Constance power input without pulleys or tensioning devices
- 125 to 200 CFM air compressor capacities
- 7200 to 11,600 watts (peak), producing 120 or 120/240 volts at constant 60 HZ
- Power sources run simultaneously or independently
- Lifetime warranty on air end
- Provisions for hydraulic pump
- Saves space
- Saves weight
- Frees up trailer hitch
- Easy to install
Safety Features
- Built-in over speed protection
- Ground fault interrupter circuit
- Remote-mounted control panel
- Air pressure-relief safety orifice
- Oil fill plug safety relief
